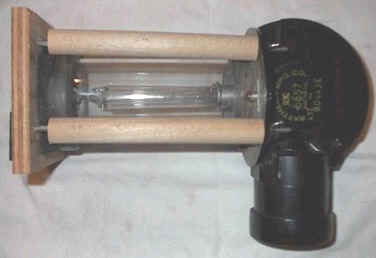

This Tube is made by the Raytheon Mfg. Co. for the Marconi Co. Tube has the number RK-5657 and serial number B0443E stamped on it.
2j56a Raytheon magnetron


Label reads "Raytheon RK2J34,
Made in U.S.A., serial no. L2654E



4J26 Large Lo frequency Magnetron!







  Western Electric 449-A





449A, 450A Reflex klystrons, shell and pins in same format as on 416A triode, waveguide output, heat­er 6.3 V @ 880 mA, resonator 525 V, reflector voltage -128.

449A, B Tunes 5925-6425 MHz, 150 mW output. "B" replaces "A," has tuner as­sembly added to waveguide.

450A Tunes 6090-6175 MHz., 150 mW output






Card Image Courtesy Jim Cross
